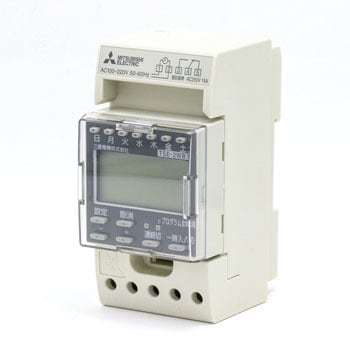

Time Switch TSE-2 seriesTSE-2WB 15A

You can build a 1 -minute program.Up to 16 points/day, TSE-2WA type up to 24 points/week.
TSE-2WA type can be widely controlled.
The external dimensions are 50mm width because the distribution board agreement dimensions (JIS C 8201-2-2) are 50mm width, so it can be put into a distribution board clearly.It can also be attached to the IEC35mm rail on the control panel.
Power outage compensation for 10 years (+20 ° C power outage rate of 50%or less) without charging by lithium battery can be used.
Even during a power outage, it is possible to operate ON / OFF time and correction of clocks.
Since the display unit rotates 90 ° left and right, the display item by LCD can be read from the front even if it is attached in the same direction as the distribution board agreement dimension breaker.
Equipped with a test run function.Press the cancellation button and the button for 3 seconds at the same time to check the operation of the program you set yourself.(Since the output is actually operated as well as the display, you can check more reliable)
