OMRON

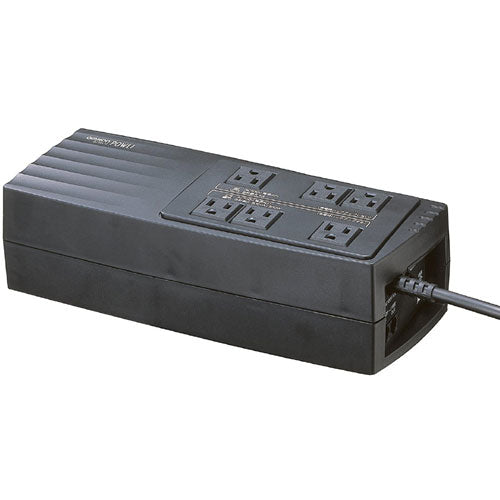

OMRON UPS (BZ50LT2) table tap type
Regular price
$5,562.00 TWD
Regular price
$5,855.00 TWD
Sale price
$5,562.00 TWD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
| Driving method | Continuous commercial power supply system |
|---|---|
| housing | Horizontal/vertical (wall mounted) |
| Rated input voltage | AC100V |
| Rated input frequency | 50/60Hz±4Hz |
| Number of input phases | Single-phase |
| Input outlet shape | NEMA5-15P |
| Rated output voltage | AC100V±10% |
| Rated output frequency | 50/60Hz±1Hz |
| Number of output phases | Single-phase |
| Output outlet shape | NEMA5-15R |
| Number of output outlets (backup) | 3 |
| Number of output outlets (through) | 3 |
| Power consumption (normal/maximum) | 20W |
| Maximum output capacity (W) | 300W |
| Maximum output capacity (VA) | 500VA |
| Backup time (at full load) | 3 points |
| Output voltage during battery operation | 100V |
| Output frequency during battery operation | 50/60Hz±1Hz |
| Output waveform during battery operation | square wave |
| Switch-to-battery time | Within 10msec |
| battery type | sealed lead battery |
| number of batteries | 1 |
| charging time | 12 |
| Power management software (attached software) | Free download "UPS service driver (USB version)" "Simple Shutdown Software" Option PA01 |
| Power management software compatible OS | UPS service driver (Windows Sever 2003/Windows XP/2000) Simple Shutdown Software (Windows Sever 2003/2008/Windows Vista/XP/Windows7 will be supported soon) PA01 (Windows Sever 2003/2008/Windows Vista/XP/2000) |
| Surge function | Yes Line surge protection function (telephone line only) |
| Safety Specifications | VCCI Type B |
| Body size (H×W×D) | 300(W)×123.5(D)×86.5(H)mm |
| body weight | 3.2kg |
| remarks | 3-year warranty (with 1-year battery free service)/Compact/Lightweight/Low price/Long-life battery (4-5 years) |
| asbestos | does not contain |
| RoHS Directive | Correspondence |
| J-Moss | Not applicable |
| Environmental self-assertion mark | none |
| radio wave method | Not applicable |
| Telecommunications Business Law | Not applicable |
| Electrical Appliance and Material Safety Law | Not applicable Only applicable for 3P-2P conversion plug (accessory) (already adapted) |
