• Vixen Vixen HF2-BT126SS-A
1 1

Vixen

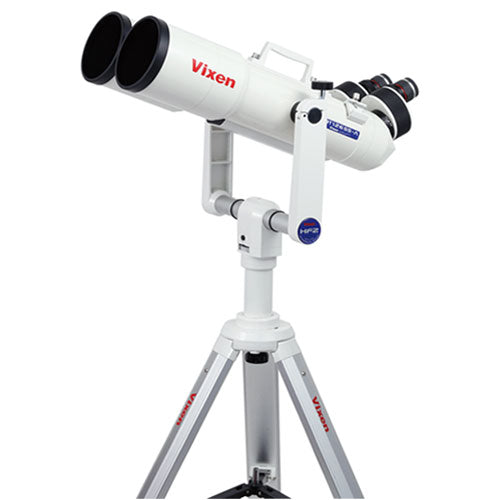

Vixen Vixen HF2-BT126SS-A

$138,212.00 TWD
$145,487.00 TWD $138,212.00 TWD
Sale Sold out
Tax included. Shipping calculated at checkout.

set content BT126SS-A lens barrel Eye lens (SLV20mm x 2 pieces) HF2 SXG-HAL130 Trial



-
[Eye portion]
Effective diameter 126㎜/Acro -mart, multi -coating
Focal length (caliber ratio f) 625㎜ (F5)
Resolution/Extreme grade 0.92 seconds, 12.3 stars
light -collecting power 324 times the naked eye
Size/Weight Length 630mm Width 360mm height 200 mm 10.5kg
Finder Alimizo type pedestal attached (sold separately)
Eye width 58-102㎜
*1… XY Spot Finder or 50mmxy viewfinder leg (L) is used together with a dark view viewfinder 7 times 50mm.
[Eye portion]
parts mounting size Insertion/31.7㎜
(Sold optional eyepiece sold separately) (*2)
eyepiece lens ( * Note)
(31.7mm diameter) SLV20mm x 2 pieces (31 times, 97 minutes of real world)
*2: 31.7mm diameter eyepiece can be used.(However, Lv8 to 24mm and NPL cannot be used)
* When using a high -magnification eyepiece lens
The "BT126SSS-A lens barrel" can change the magnification by replacing the eyepiece, but due to the structure, the optical axis may not match when using a high-magnification eyepiece.For eyepieces used, we recommend those with a focal length of about 10 mm or more (medium / low magnification).
[Standing part]
Type type HF2 Subcommittee
Up, down, left and right Up, bottom, left and right free stop, hardness adjustment mechanism
Weight about 3.4kg
[Syuji]
Material/Former Large hexagonal aluminum 2 -step extension (one touch type)
Size/Weight Length 807⇔1,299mm
height (ground height) 730⇔156mm
Installation radius 460⇔ 706mm 5.5kg
[Others]
Photography Photography cannot be taken
Observation of the sun Not possible
Total weight 19.4kg (optional eyepiece lens)
Warranty period 5 years warranty from the date of purchase
