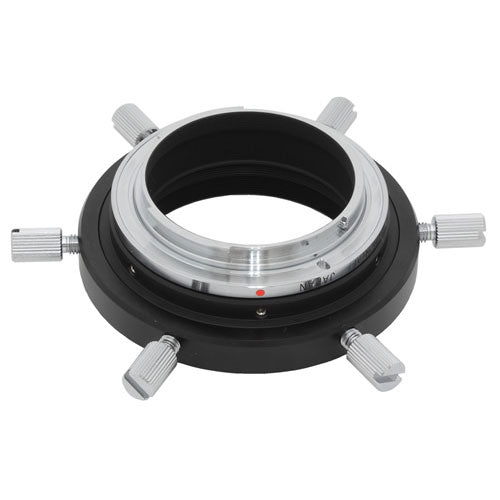

VIXEN Vixen Inspoted Wide Adapter 60DX EOS
Couldn't load pickup availability
Adapter for direct focus photography with excellent accuracy, durability, and rigidity This is an adapter for connecting a Canon single -lens camera ( * 1) to a astronomical telescope lens barrel with a 60mm diameter screw to the eyepiece.By reviewing the material and structure, the accuracy, durability, and rigidity are greatly improved compared to our conventional product ( * 2), making it easier to rotate the camera.In addition, the inner diameter has been expanded by adopting a camera mount dedicated to the impatient wide adapter 60DX.It is also effective in reducing peripheral dimming.In particular, it is powerful in combination with a full -size single -lens camera with a wide image sensor. ( * 1) Can be connected to EF-S mount.EF-M mount cannot be connected ( * 2) Inspitation wide adapter 60 EOS+T ring (N) for EOS
-
| screw specification | Lens barrel mounting screw → 60mm P = 0.75mm correction lens mounting screw → 56mm P = 0.75mm |
|---|---|
| Camera mounting | Can be installed directly to the Canon EF mount (not installed EF-M mount) |
| Camera Rotation Organization | Camera rotation mechanism equipment |
| Accessories | Clamp screw L (6 bottles → main body embanked), clamp screw S (6 pcs), setbrol M5 × 5 (1), hexagonal wrench 2.5 mm (1) |
| Compatible lens barrel | All models equipped with 60mm screws on the dolo tube or eyepiece A81m, A105m, ED103S, ED115S, AX103S, AX103S, R200SS, VMC200L, VMC260L, VMC330L, etc. |
| body size | φ81 × 30mm (if the protrusion is included, φ 113 × 30mm) |
| Weight | 190g |
| Country of origin | Japan |
