MITUTOYO

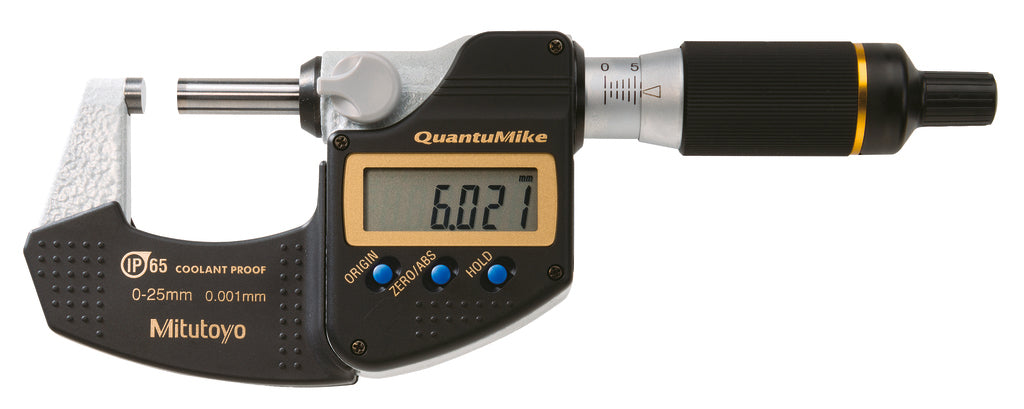

MITUTOYO MDE-25PX 293 Series Cantamike MDE-MX/PX
Regular price
$6,067.00 TWD
Regular price
$6,386.00 TWD
Sale price
$6,067.00 TWD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
◆Specifications and dimensional information under specification
Type Standard micrometer Display method Digital
Waterproof function Yes Measurement data output terminal Yes/No
Measuring range (mm) 0 to 25 Minimum display quantity (mm) 0.001
Instrumental error (μm) ±1 (Quantization error ±1 count is not included.) Flatness (μm) 0.3 or less
Mass (g) 265 Parallelism (μm) 1 or less
IP protection class IP65 (IEC60529) Accessories 1 button-type silver oxide battery (SR44 No.938882) for monitor, 1 wrench (No.301336)
Specifications Origin set function (ABS length measuring system), Zero set function (INC length measuring system), Hold function, Function lock function, Auto power ON/OFF function, Error alarm Size a (mm) 6.5
Size b(mm) 25 Measuring force (N) 7 to 12 *Measuring force when using speeder part ratchet (When measuring, multiply the measuring force by the same conditions and perform base point alignment.)
Power source 1 button-type silver oxide battery (SR44) Battery life Approx. 2.4 years under normal use
Position detection method Electromagnetic induction rotary encoder - -
Type Standard micrometer Display method Digital
Waterproof function Yes Measurement data output terminal Yes/No
Measuring range (mm) 0 to 25 Minimum display quantity (mm) 0.001
Instrumental error (μm) ±1 (Quantization error ±1 count is not included.) Flatness (μm) 0.3 or less
Mass (g) 265 Parallelism (μm) 1 or less
IP protection class IP65 (IEC60529) Accessories 1 button-type silver oxide battery (SR44 No.938882) for monitor, 1 wrench (No.301336)
Specifications Origin set function (ABS length measuring system), Zero set function (INC length measuring system), Hold function, Function lock function, Auto power ON/OFF function, Error alarm Size a (mm) 6.5
Size b(mm) 25 Measuring force (N) 7 to 12 *Measuring force when using speeder part ratchet (When measuring, multiply the measuring force by the same conditions and perform base point alignment.)
Power source 1 button-type silver oxide battery (SR44) Battery life Approx. 2.4 years under normal use
Position detection method Electromagnetic induction rotary encoder - -
