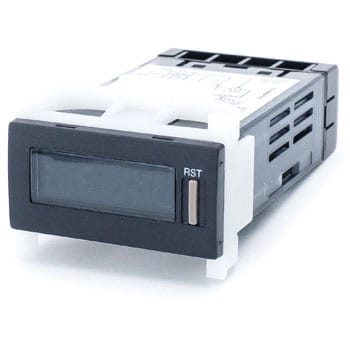

• Total counter/Time counter H7GPH7GP-CB
1 1

OMRON

Total counter/Time counter H7GPH7GP-CB

$120.56 USD
$126.91 USD $120.56 USD
Sale Sold out
Tax included. Shipping calculated at checkout.


By adopting a negative type LCD and a red LED backlight with a height of 8.5 mm, high -vision recognition as LED is realized by low power consumption.
IP66 oil -resistant NEMA4 is realized by integrating the front and case parts and oil -resistant parts materials.
Achieves a short body length of 80mm.
Compatible with NPN and PNP input mode by switching the switch.
Supports both external resets and manual resets.
VDE0106 Includes a finger -safe terminal stand cover for electric shock prevention that complies with VDE0106 PART 100.

Withstand voltage
Conductive terminal and non -charging metal part exposed: AC2000V 1min
Both power terminals and control input terminals: AC2000V 1min
Blackout memory
Backup by EEP-ROM (200,000 or more times)
Data retention: 20 years or more
input signal Count, reset
voltage input (NPN transistor input, contact input)/
Short circuit (time ON) impedance: 1kΩ or less
short circuit (time) Remaining voltage: DC2V or less
Open(OFF) Impedance: 100kΩ or more> Opening (at OFF) impedance: 100kΩ or less
key protection
response speed
Input
Reset: 20/1ms (automatic switching according to the count speed)
Key protection: about 1s
Noise
± 1.5kV (AC power supply terminal)
± 480V (between input terminal)
Impulse voltage (v)
3K (between power supply terminals)
4.5K (intercharged portion and non -charging metal part exposed)
Static electricity capacity (KV)
Display part: Make a malfunction 8, destruction 15
Dip switch portion: malfunction 4, destruction 8
