OMRON

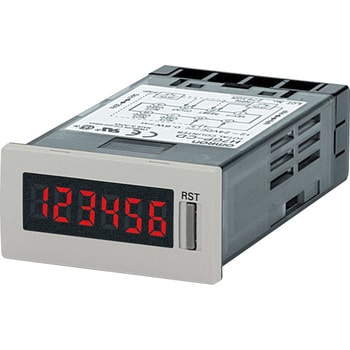

Total counter/Time counter H7GPH7GP-TDB
Regular price
$92.03 USD
Regular price
$96.87 USD
Sale price
$92.03 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
By adopting a negative type LCD and a red LED backlight with a height of 8.5 mm, high -vision recognition as LED is realized by low power consumption.
IP66 oil -resistant NEMA4 is realized by integrating the front and case parts and oil -resistant parts materials.
Achieves a short body length of 80mm.
Compatible with NPN and PNP input mode by switching the switch.
Supports both external resets and manual resets.
VDE0106 Includes a finger -safe terminal stand cover for electric shock prevention that complies with VDE0106 PART 100.
| Blackout memory |
Backup by EEP-ROM (200,000 or more times) Data retention: 20 years or more |
|---|---|
| input signal |
Start, reset Voltage input (NPN transistor input, contact input)/ Short circuit (ON) impedance: 1kΩ or less Short circuit (ON) Remaining voltage: DC2V or less Open(OFF) Impedance: 100kΩ or more> Opening (at OFF) Impedance: 100kΩ or less key protection |
| response speed |
Input Reset: 20ms Start: 20ms Key protection: about 1s |
| Noise |
± 480V (between DC power supply terminal) ± 480V (between input terminal) |
| Impulse voltage (v) |
1K (between power supply terminals) 1.5k (intercharged portion and non -charging metal part exposed) |
| Static electricity capacity (KV) |
Display part: Make a malfunction 8, destruction 15 Dip switch portion: malfunction 4, destruction 8 |
