• QNAP QNAP NAS T253DM301
1 1

QNAP

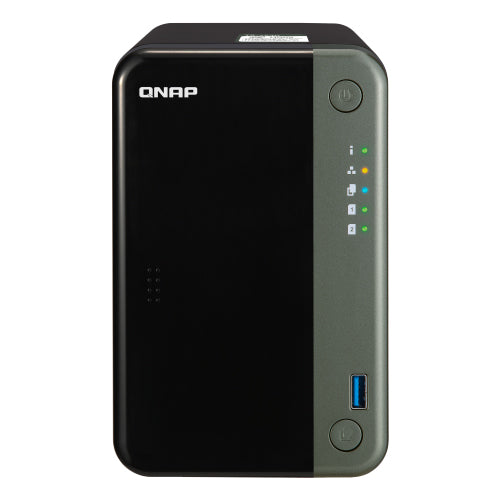

QNAP QNAP NAS T253DM301

$1,029.90 USD
$1,084.10 USD $1,029.90 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Model number TS-253D (QNAP model number TS-253D-4G)
CPUs Intel Celeron J4125 Quad Core 2.0 GHz (up to 2.7 GHz)
Architecture 64-bit x86
Graphics Processor Intel HD Graphics 600
Floating point unit, encryption engine (AES-NI), hardware-assisted transcoding
Memory Slot 2 x DDR4 SODIMM
Standard 4GB (1 x 4GB), Max 8GB
* When installing two cards, use memory of the same capacity.
flash 4GB (dual boot OS protection)
drive bay 2 x 3.5”/2.5” SATA 6Gb/s HDD/SSD
Hot-swappable, SSD cache acceleration supported
M.2 SSD slot Option (with QM2 expansion card)
LAN port 2 x 2.5GbE (2.5G/1G/100M) RJ-45
Optional 10GbE, 5GbE (with expansion card)
USB port 3 x USB 2.0 Type-A
2 x USB 3.2 Gen.1 Type-A
Optional USB 3.2 Gen.2 (10Gbos with expansion card)
PCIe expansion slots 1 x PCIe Gen.2 x4
* 10GbE performance is limited due to PCIe bandwidth limitations.
HDMI output 1 x HDMI 2.0 (up to 4096 x 2160 @ 60Hz)
LED indicator Power, Status, LAN, USB, HDD1-2
Buttons Power, Reset, USB Autocopy
System Warning Buzzer
Security Design Kensington lock compatible
Form factor Tower
External size 168 (H) x 105 (W) x 226 (D) mm
Weight Body weight 1.48 kg, packing weight 2.68 kg (without drives)
Power supply unit 65W AC adapter, 100-240V
Power Consumption 8.198 W in HDD sleep, 12.448 W in normal operation
Fans 1x70mm, 12VDC
Operating ambient temperature 0 - 40°C
Operating Ambient Humidity 5 - 95% (non-condensing), wet bulb temperature 27°C
Noise level 17.1 db(A)
Included Items NAS main unit, LAN cable (RJ-45) x 2, AC adapter, power cable, screws for 3.5 inch drives, screws for 2.5 inch drives, quick installation guide
Warranty period 3 years for stand-alone models, 5 years for near-line models with HDD, 3 years for middle class
