Synology

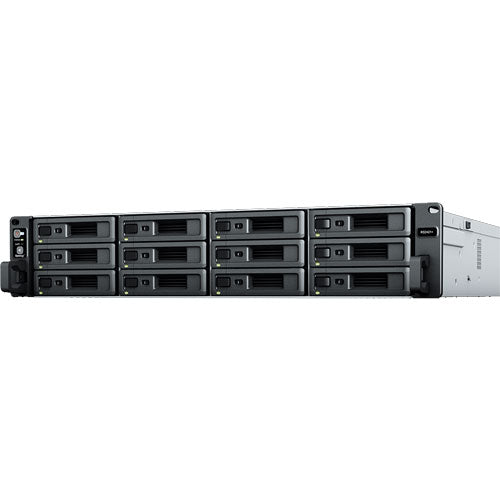

Synology RS2421RP+ [RackStation 2U12 Bay NAS 4 Core Ryzen V1500B 4GB Memory GBEX4 PCIe expansion SATA compatible SATA compatible SATA
Regular price
$3,700.72 USD
Regular price
$3,895.49 USD
Sale price
$3,700.72 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
| CPU model | AMD RYZEN V1500B |
|---|---|
| CPU architecture | 64-bit |
| CPU frequency | Quad Core 2.2 GHz |
| Hardware encryption engine (AES-NI) | Response |
| System Memory | 4 GB DDR4 ECC UDIMM |
| Pre -installed memory module | 4 GB (4 GB x 1) |
| Number of memory slots | 2 |
| Memory extension maximum | 32 GB (16 GB x 2) |
| Drive Bay | 12 |
| Maximum number of bays when using an expansion unit | 24 (RX1217/RX1217RP X 1) |
| Compatible drive type | 3.5 "Sata HDD, 2.5" Sata HDD, 2.5 "Sata SSD |
| Maximum single volume size | 108 TB |
| Hot swapable drive | Response |
| RJ-45 1GBE LAN Port | 4 (Link Agregation / Failover) < / Td> |
| USB 3.2 GEN 1 port | 2 |
| Extended port | 1 |
| PCIe extension | 1 X GEN3 X8 SLOT (X4 LINK) |
| File System | ・ Internal drive BTRFS, EXT4 |
| ・ External drive BTRFS, EXT4, FAT, NTFS, HFS+, EXFAT | |
| * EXFAT Access can be purchased separately at the package center. | |
| Form Factor (Ru) | 2u |
| outer dimensions (height x width x depth) | 88 mm x 482 mm x 578 mm |
| Weight | 11.9 kg |
| Rack Intration Support | 4 pillars 19 inch (Synology Rail Kit -RKS1317) |
| * Rail kits are sold separately | |
| System fan | 60 mm x 60 mm x 3 PCS |
| fan speed mode | ・ Maximum speed mode |
| ・ Cooling mode | |
| ・ Low noise mode | |
| Easy replacement system fan | Response |
| power recovery | Response |
| noise level | 54 DB (a) |
| * Fully equipped with a noise -level test environment Seagate 2TB ST2000VN000 Hard drive in idol state.G.R.A.S. 2 Type 40AE Mike, installed 1 meter away from Synology Nas, respectively.Background noise 16.49-17.51 DB (a), temperature 24.25-25.75 ° C; humidity 58.2-61.8% | |
| Book the power supply on/off | Response |
| Wake on LAN / WAN < / TH> | Response |
| Power unit / adapter < / TH> | 350 W |
| Redundant power supply | Response |
| AC input power supply voltage | 100 V to 240 V AC |
| Power frequency | 50/60 Hz, single -phase |
| Power consumption | 91.76 W (access) |
| 48.21 W (HDD high -bunation) | |
| * Power consumption is measured with the data full loaded on the Western Digital 1TB WD10EFRX hard drive. | |
| English heat | 313.31 Btu/HR (access) |
| 164.61 Btu/HR (HDD high -bunation) | |
| Operation temperature | 0 ° C to 35 ° C (32 ° F to 95 ° f) |
| storage temperature | -20 ° C to 60 ° C (-5 ° f to 140 ° f) |
| Relative Humidity | 5% -95% RH |
| Certification Organization | FCC, CE, BSMI, EAC, CCC, KC, UL, VCCI, RCM |
| Guarantee | 3 years hardware guarantee, extended to 5 years -EW202 |
| * As described on the purchase receipt, the warranty period starts from the date of purchase. | |
| Environment | ROHS compliant |
| Package content | ・ 1 body |
| ・ 1 accessory pack | |
| ・ 2 AC power codes | |
| ・ 1 quick installation guide | |
| Optional accessories | ・ DDR4 ECC UDIMM D4EU01-4G/D4EC-2666-8G/D4EC-2666-16G |
| ・ Extended unit RX1217/RX1217RP | |
| ・ 3.5 "SATA HDD HAT5300 | |
| ・ 2.5 "SATA SSD SAT5200 | |
| ・ M.2 SSD & amp; 10GBE Combo Adapter Card E10M20-T1 | |
| ・ M.2 SSD adapter card M2D20 | |
| ・ 25GBE Network Interface Card E25G21-F2 | |
| ・ 10GBE Network Interface Card E10G21-F2/E10G18-T2/E10G18-T1 | |
| ・ Rail kit Sliding RKS1317 | |
| ・ VisualStation VS960HD/VS360HD | |
| ・ Surveillance Device License Pack |
