• Canon Network Camera VB-M740E (H2)]
1 1

Canon

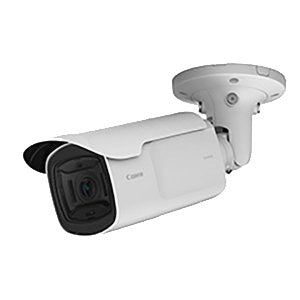

Canon Network Camera VB-M740E (H2)]

$29,650.00 TWD
$31,210.00 TWD $29,650.00 TWD
Sale Sold out
Tax included. Shipping calculated at checkout.

-Pathemic coating II is a coating with high characteristics with water and affinity.The rebellion of light due to rainwater is suppressed, improving the visibility after rainy and after rain.



-
Type Outdoor box type
Image compression method JPEG, H.264
Resolution JPEG, H.264 → 1280 × 720, 640 × 360, 320 × 180, 1280 × 960, 640 × 480, 320 × 240
Image quality JPEG, H.264 → 10 steps
Image update speed (frame rate) JPEG → 0.1-30fps, H.264 → 1/2/3/6/6/10/15/30fps
Security Camera control management → Administrator, registered users, control management, connection restrictions → user restrictions (user name and password), host access limit (IPv4, IPv6), etc.
Communication protocol IPv4, IPv6, IPv6, TCP/IP, UDP, HTTP, FTP, SNMPV1/V2C/V3 (MIB2), DHCP, DNS, Autoip, MDNS, ARP, ICMP, POP3, NTP, NTP, SMTP, SMTP, RTSP, RTSP, RTSP,SSL/TLS, IPsec, onvif, WV-HTTP (Canon unique)
Maximum number of simultaneous access 30
optical zoom magnification 2.4 times
Digital zoom magnification 4 times
angle of view Aspect ratio 16-9 → horizontal angle → 113.4 ° (W end) -46.5 ° (t end), vertical angle → 61.4 ° (W end) -26.2 ° (T end), Aspect ratio 4In the case of against 3 → horizontal angle → 113.4 ° (W end) -46.5 ° (T end), vertical angle → 83.0 ° (W end) -34.9 ° (T end)
Pan (left and right) function 344 ° (± 172 °)
Tilt (up and down) function 93 ° (-3 ° to 90 °), voice transmission and reception is not compatible
Valid pixels 1.3 million pixels
Image element 1/3 type CMOS (primary color filter)
Lens focus 2.55 (W end) ~ 6.12mm (T end), 35mm formulation focal length (approx.) → 18.1 (W end) ~ 43.4mm (T end)
Lens brightness F1.2 (W end) -F1.8 (T end)
Shutter Speed 1, 1/2, 1/4, 1/8, 1/30, 1/60, 1/60, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000, 1/16000 seconds
Color Night View Function Auto/day mode/night mode
corresponding illuminance Day mode (color) → 0.02LUX (F1.2, shutter speed 1/30 seconds, smart shade correction OFF, 50IRE), night mode (black and white) → 0.001Lux (F1.2, shutter speed 1/30 seconds, when smart shade correction is OFF, 50IRE)
Voice Function None
Network LAN × 1 (RJ45, 100BASE-TX (auto/total double/half double))
body size (H) 111mm
body size (W) 102mm
body size (D) 214mm
body weight 2040g
Power PoE function → PoE power supply compatible with LAN connector (IEEE802.3AT Type1 standard compliant)
Maximum power consumption 7.4W
Maximum power consumption (remarks) PoE input → Up to about 7.4W
