• Buffalo WS5220DN02S2 [TeraStation WS IoT 2022ST desk 2 bay 2TB]
1 1

BUFFALO

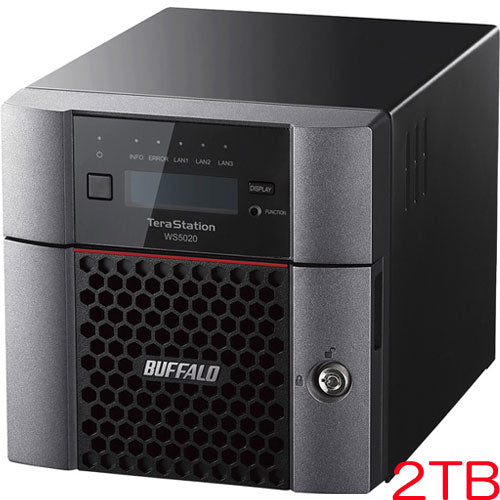

Buffalo WS5220DN02S2 [TeraStation WS IoT 2022ST desk 2 bay 2TB]

$54,771.00 TWD
$57,654.00 TWD $54,771.00 TWD
Sale Sold out
Tax included. Shipping calculated at checkout.

capacity 2TB
Chassis Desktop
Interface (LAN terminal) [LAN terminal (10GBASE-T)] back x 1, [LAN terminal (1000BASE-T)] back x 2
Interface (USB port) [USB 3.2 (Gen 1) terminal] Rear x 2
Supported drive size 3.5inch
Wake on LAN 〇
Drive Encryption 〇
Backup function Windows Server Backup
Backup software for clients NovaBACKUP (10 client OS licenses, 1 server OS free download by entering the product serial number)
NAS dedicated HDD 〇
Installed OS Windows Server IoT 2022 for Storage Standard
CPUs Intel Atom C3338
Memory DDR4 ECC 8GB
Interface (LAN terminal) [Standard] IEEE 802.3an (10GBASE-T), IEEE 802.3bz (5GBASE-T/2.5GBASE-T), IEEE 802.3ab (1000BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3 i(10BASE-T)
[Transmission speed] 1000Mbps full duplex, 100Mbps half/full duplex, 10Gbps full duplex, 10Mbps full duplex, 2.5Gbps full duplex, 5Gbps full duplex
[Terminal shape] RJ-45 type 8 poles
[Supported protocol] TCP/IP, UDP
[Supported network file protocol] SMB
Interface (USB port) [Terminal shape] USB Type-A
[Compliant standard] USB 3.2 (Gen 1)
[Data transfer speed] Maximum 5 Gbps (standard value)
Built-in interface [Compliant standard] Serial ATA III
[Number of terminals] 2 (HDD connected)
[Data transfer rate] Maximum 6.0Gbps (theoretical value)
LCD Display [Backlight color] Blue during normal operation, red during failure
[Contents] Displays [OS name], [Host name/IP address], [Time], [Link Speed], errors, and information
Number of installed drives 2
Number of Clocks/Number of Cores 1.50 GHz (Turbo Boost 2.20 GHz)/2 cores/2 threads
Number of Bays 2
RAID method Software RAID
Supported RAID 1/0 (factory RAID1)
iSCSI Target 〇
Replication 〇
Online Storage Linkage 〇
Port Trunking / NIC Teaming 〇
Quota function 〇
Bulk backup function 〇
Virus check Windows Defender
Fans One 92mm square ball bearing fan
Power supply AC100V 50/60Hz
Power Consumption Up to 85W
Energy Consumption Efficiency (revised April 2021) IV Division 0.0146
External dimensions (width x height x depth) 170×170×230mm *Excluding protrusions
Mass About 5.0kg
Guaranteed operating environment: no condensation Temperature 0-40°C Humidity 10-85%
Warranty period 3 years (main unit and hard disk)
Green Purchasing Law (revised in September 2021) Yes
RoHS standards Compliant
Standards VCCI Class A
Main Accessories LAN cable (category 6A, straight, 2m), power cable (1.6m, outlet side NEMA 5-15P, power supply unit side IEC 60320 C13), 3-pole to 2-pole conversion adapter, front panel opening/closing key (2 pcs), USB recovery media, instruction manual, warranty card
