• Io Data HDL4-XAB-U HDL4-XA16-UB [10GbE & Multi-Giga Linux 4 Drive 1U NAS 16TB]
1 1

IO DATA

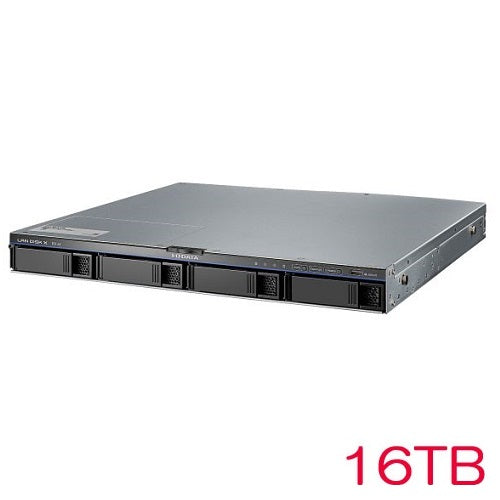

Io Data HDL4-XAB-U HDL4-XA16-UB [10GbE & Multi-Giga Linux 4 Drive 1U NAS 16TB]

$77,471.00 TWD
$81,548.00 TWD $77,471.00 TWD
Sale Sold out
Tax included. Shipping calculated at checkout.

Compatible models Windows computers, Apple Mac series, iOS, Android smartphones, tablets, Chromebooks
Supported OS (Japanese version only) Windows 11, Windows 10 November 2021 Update (version 21H2), Windows 10 May 2021 Update (version 21H1), Windows 8.1, Windows Server 2022, Windows Server 2019, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012, macOS 10.15-12, iOS 13-15.0, iPadOS 14.0-15.0, Android 5.0-12.0, ChromeOS
Supported browsers Microsoft Edge 79-96, Google Chrome 40-96, Safari 12-15
CPUs Intel Atom Processor C3338 (2.20GHz Dual Core)
capacity 16TB
Memory 2GB
Supported communication protocols TCP/IP (IPv4, IPv6)
Supported Application Protocols SMB (1.0, 2.0, 2.1, 3.0, 3.0.2, 3.1.1), AFP, FTP, HTTP/HTTPS, SNMP *Supported by adding functions in the free package
Supported remote access services Remote Link 3 *Supported by adding functions in the free package.
Recommended maximum number of simultaneous connections 64 units (with 10GbE connection)/32 units (with 1GbE connection)
[LAN port]
Transfer standard (10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX) x 1 (1000BASE-T/100BASE-TX/10BASE-T) x 1
Auto-MDI/MDIX support ○
Access Method CSMA/CD
Connector shape RJ-45
[USB port]
USB 3.1 Gen 1 (USB 3.0) connector Back x 2
USB 2.0 connector Front x 1, Back x 1
[HDD]
Recruitment Drive NAS dedicated hard disk
number of drives 4 (SATA connection)
HDD replacement mechanism Cartridge type
Hot-swappable ○
[Redundancy]
Method Software
Settings Expansion volume/RAID 0/RAID 5/RAID 6 *The expansion volume is set at the time of shipment.
[Case Features]
Airflow path Each cartridge front part
Built-in fan 2 small fans, 1 power supply fan
Fan Control automatic
LCD -
Anti-theft features -
【Extension device】
External HDD connection 4 USB HDDs (maximum)
UPS compatible ○
Power supply Built-in power supply
Rated voltage AC 100V 50/60Hz
Power Consumption 120W (Max), 59W (Typ)
External dimensions (W×D×H) Approx. 430 x 407 x 44 mm (excluding protrusions)
mass (body only) 8.2kg
Weight (when packed) About 13kg
Operating temperature range 5 to 40°C
Operating Humidity Range 10 to 85% (no condensation)
Acquired Standards and Regulations VCCI Class A, RoHS directive compliant (10 substances), Green Purchasing Law, Energy Conservation Law
Warranty period 5 year warranty
Attachments Power cord (PSE compliant), AC plug conversion adapter, LAN cable x 2, USB memory for master key storage, USB lock key sticker (2 pieces), management manual, ActiveImage Protector Desktop Edition guide, rack mount rail
