• Canon Network Camera VB-M741LE (H2)
1 1

Canon

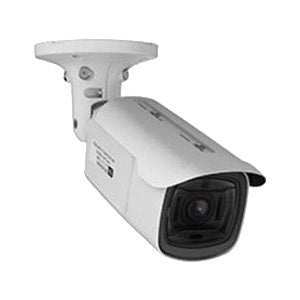

Canon Network Camera VB-M741LE (H2)

$37,886.00 TWD
$39,880.00 TWD $37,886.00 TWD
Sale Sold out
Tax included. Shipping calculated at checkout.

-Pathemic coating II is a coating with high characteristics with water and affinity.The rebellion of light due to rainwater is suppressed, improving the visibility after rainy and after rain.



-
Type Outdoor box type
Image compression method JPEG, H.264
Resolution JPEG, H.264 → 1280 × 720, 640 × 360, 320 × 180, 1280 × 960, 640 × 480, 320 × 240
Image quality JPEG, H.264 → 10 steps
Image update speed (frame rate) JPEG → 0.1-30fps, H.264 → 1/2/3/6/6/10/15/30fps
Security Camera control management → Administrator, registered users, control management, connection restrictions → user restrictions (user name and password), host access limit (IPv4, IPv6), etc.
Communication protocol IPv4, IPv6, IPv6, TCP/IP, UDP, HTTP, FTP, SNMPV1/V2C/V3 (MIB2), DHCP, DNS, Autoip, MDNS, ARP, ICMP, POP3, NTP, NTP, SMTP, SMTP, RTSP, RTSP, RTSP,SSL/TLS, IPsec, onvif, WV-HTTP (Canon unique)
Maximum number of simultaneous access 30
optical zoom magnification 2.4 times
Digital zoom magnification 4 times
angle of view Aspect ratio 16-9 → horizontal angle → 113.4 ° (W end) -46.5 ° (t end), vertical angle → 61.4 ° (W end) -26.2 ° (T end), Aspect ratio 4In the case of against 3 → horizontal angle → 113.4 ° (W end) -46.5 ° (T end), vertical angle → 83.0 ° (W end) -34.9 ° (T end)
Pan (left and right) function 344 ° (± 172 °)
Tilt (up and down) function 93 ° (-3 ° to 90 °), voice transmission and reception is not compatible
Valid pixels 1.3 million pixels
Image element 1/3 type CMOS (primary color filter)
Lens focus 2.55 (W end) ~ 6.12mm (T end), 35mm formulation focal length (approx.) → 18.1 (W end) ~ 43.4mm (T end)
Lens brightness F1.2 (W end) -F1.8 (T end)
Shutter Speed 1, 1/2, 1/4, 1/8, 1/30, 1/60, 1/60, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000, 1/16000 seconds
Color Night View Function Auto/day mode/night mode
corresponding illuminance Day mode (color) → 0.02LUX (F1.2, shutter speed 1/30 seconds, smart shade correction OFF, 50IRE), night mode (black and white) → 0lux (F1.2, shutter speed 1/30 seconds 1/30 seconds, Smart Shade correction OFF, 50IRE infrared lighting ON)
Voice Function Yes
Voice compression system G.711μ-Law (64kbps)
Voice input φ3.5mm mini jack connector (monaural), LINE IN (connected to an amplifier microphone) or mic in (connected to an amplifier microphone)
audio output φ3.5mm mini jack connector (monaural), LINE OUT (connected to an amplifier speaker)
Network LAN × 1 (RJ45, 100BASE-TX (auto/total double/half double))
body size (H) 111mm
body size (W) 102mm
body size (D) 214mm
body weight 2120g
Power PoE function → PoE power supply compatible with LAN connector (IEEE802.3AT Type1/Type2 standard), dedicated AC adapter → PA-V18 (AC100-240V), external power supply → AC24V/DC12V
Maximum power consumption 21.2W
Maximum power consumption (remarks) PoE+input → up to about 21.2W, PoE input → Up to about 10.1W, AC adapter PA-V18 input → up to about 12.8W (AC100V)
