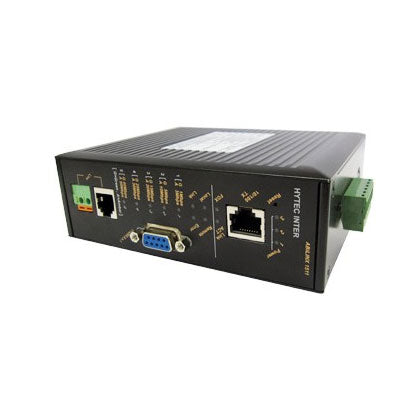

HYTEC INTER 121-AB-005 [Abilinx 1511 Industrial VDSL modem]

$30,629.00 TWD
$32,241.00 TWD $30,629.00 TWD
Sale Sold out
Tax included. Shipping calculated at checkout.

It is a VDSL modem with a wide operating temperature that can be communicated at a maximum of 50Mbps with a point -point configuration.DIN rail can be installed.Because it supports DC power, the AC adapter is sold separately.



-
Transmission method ITU-T G.993.1 (VDSL)
Transmission speed 1/3/5/10/15/20/20/25/30/40/50 Mbps (automatic/fixed settings possible), up and down speed symmetrical
frequency bandwidth 0.24MHz to 11.81MHz
Maximum frame length 1536byte (including VLAN TAG)
Management function http, telnet, snmp, console
Interface ● Ethernet (RJ-45) X1 port, ・ 10/100 Base-TX Half/Full Duplex automatic detection, IEEE802.3/IEEE802.3u compliant, auto MDI/MDIX function
● LINE (RJ-11) x1 port, ・ 1/3/5/10/15/20/20/25/30/40/50Mbps VDSL * Cannot be connected to general public line.* Please contact us separately if you are a telephone overlapping.
● LINE (terminal block) x1 port
● Console (RS-232C) x1 port
Dimensions (w) 50 × (H) 135 × (d) 110mm (not included)
Weight 0.8kg (body only)
Power
● Power 1 DC 12V, 3A
● Power 2 DC 12-32V
● Power 3 DC 12-32V
Maximum power consumption 5.67W
Operation temperature -40 ~+75 ℃
AC adapter -40 ~+85 ° C (paid option)
storage humidity 5-95 % RH (without condensation)
Certification VCCI Class A, FCC Part 15 Class A, CE Marking, Rohs, Weee, PSE
Product warranty period 5 years
