Allied Telesis

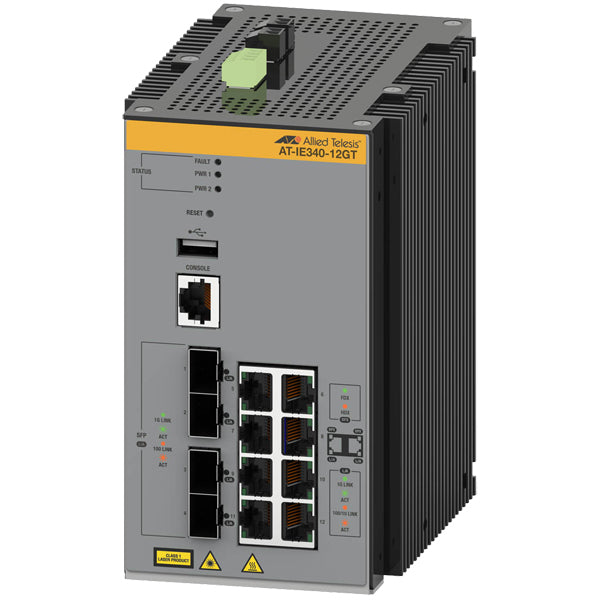

Allied Telesis 3878RZ5 [AT-IE340-12GT-Z5 L3 L3 Switch]
Couldn't load pickup availability
CentRecom at-IE340-12GT-Z5 (compatible with ROHS) is an industrial Gigabit Intelligent Switch (5 years of delivery standard maintenance).Equipped with 8 ports of 10/100/1000BASE-T port and 4 slots of SFP, it supports a wide temperature range from up to -40 ° C to 75 ° C for fanless.It also supports AMF (member/application proxy/edge node).◆ Please check here before purchasing ⇒ http: //www.allied-tresis.co.jp/support/nwsupport2/supportTicket.pdf ◆ You will need a support ID when purchasing a ticket for updating ◆ ArrivalWithin one month, check the "Support Ticket Usage Terms and Specifications" included with the ticket, and then subscribe from the Allyd Telesis website with the agreement.If not, please be sure to register because you can not provide the service. If the optional items are incorporated in the main unit, please join the main body and the options in the same maintenance menu.Please contact us for site services.
-
| Type | Switch industrial switch |
|---|---|
| Number of standard ports | 8 |
| Maximum number of ports | 12 |
| Communication speed | 10Mbps/100Mbps/1000Mbps |
| SNMP function | Yes |
| AUTO-MDIX function | Yes |
| VLAN function | Port base VLAN, protocol VLAN, IEEE8021Q tag VLAN x 4094, multiple VLAN |
| Cooling fan | None |
| Number of expansion slots | 4 |
| Manual speed switching | Yes |
| Stackable function | None |
| Number of MAC address registration | 16000 |
| body color | gray |
| housing material | Metal |
| Power | AC cable with DC lower limit 18V upper limit 57V |
| Magnet | None |
| Rack mount kit | None |
| Maximum power consumption | 24W |
| Maximum power consumption (remarks) | |
| CO2 emission | 23.126kg/year |
| Remarks | |
| asbestos | non -containing |
| ROHS Directive | Response |
| J-Moss | not eligible |
| Environmental Self -assertion mark | None |
| Other environments and safety standards | |
| Radio Law Reference | Products not eligible for the same law |
| Telecommunications Business Law | Products not eligible for the same law |
| Radio Law | non -target |
| Telecommunications Business Law | non -target |
| Legal Related Confirmation Date | 20200617 |
| body size (H) | 153mm |
| body size (W) | 91mm |
| body size (D) | 139mm |
| body weight | 2200g |
| Electrical Appliance Safety Law (body) | non -target |
| Electrical Appliance Safety Law (accessories, etc.) | No accessories |
| Electrical Appliance Safety Law (Remarks) | No accessories |
