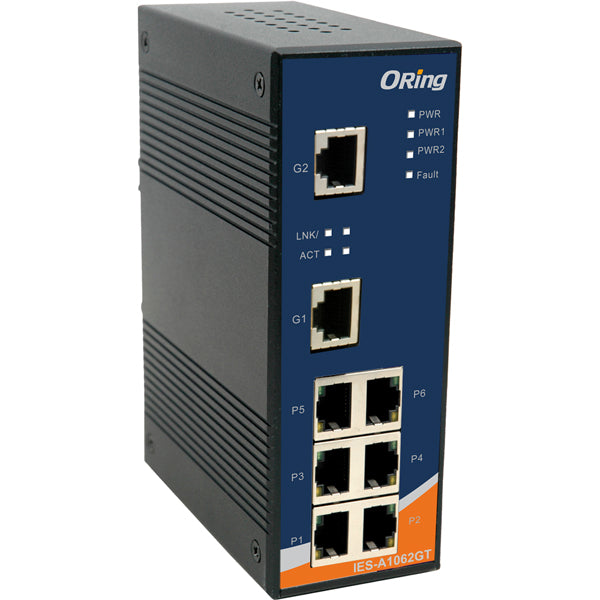

ORING IES IES-A1062GT [Industrial Ethernet Switch 8 Port C1D2/ATEX compliant]

$16,867.00 TWD
$17,755.00 TWD $16,867.00 TWD
Sale Sold out
Tax included. Shipping calculated at checkout.

● C1D2/ATEX compliant industrial Ethernet Switch ● Number of ports: 10/100BASE-T (X) × 6 ports, 10/100/1000BASE-T (X) × 2 port ● Power: 3 system power supply input/12-48VDC input 7 pin terminal platform + 12-45VDC input power jack ● Operation temperature: -40 to 70 ° C (without condensation) ● Dimensions: 52 (W) x106.1 (d) x144.3 (H) mm ● Mounting method: DIN rail mounting, wall mount mounting ● Auto-negotiations and auto MDI/MDI-X compatible ● Store and forward transfer ● Flow control compatible ● The housing is based on IP-30.



-
Type
Number of standard ports 8
Maximum number of ports
Communication speed 1000m
SNMP function None
AUTO-MDIX function Yes
VLAN function None
Cooling fan
Number of expansion slots
Manual speed switching
Stackable function
Number of MAC address registration 8192
body color
housing material
Power
Magnet
Rack mount kit
Maximum power consumption 7W
Maximum power consumption (remarks)
CO2 emission 6.745kg/year
Remarks
asbestos non -containing
ROHS Directive Response
J-Moss non -support
Environmental Self -assertion mark Yes
Other environments and safety standards
Radio Law Reference Because there is no wireless function
Telecommunications Business Law Because it does not connect to a public line
Electrical Equipment Safety Law Remarks DC power input
Radio Law non -target
Telecommunications Business Law non -target
Electrical Appliance Safety Law non -target
Legal Related Confirmation Date 20150101
body size (H) 145mm
body size (W) 52mm
body size (D) 107mm
body weight
