• Oring IES IES-A1062GF-SS-SC [Ethernet switch with industrial media converter C1D2/ATEX]
1 1

ORing

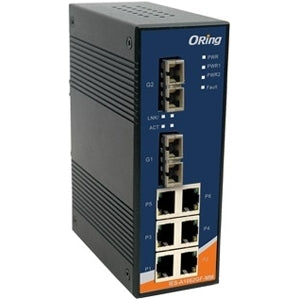

Oring IES IES-A1062GF-SS-SC [Ethernet switch with industrial media converter C1D2/ATEX]

$27,625.00 TWD
$29,079.00 TWD $27,625.00 TWD
Sale Sold out
Tax included. Shipping calculated at checkout.

● Industrial C1D2/ATEX compliant 1000BASE-X2 Port equipped 6-port Ethernet switch (single mode) ● Number of ports: 10/100BASE-T (X) × 6 ports, 1000BASE-SX/LX × 2 port (SS: Single mode)● Power supply: 3 system power input compatible/12-48V DC input 7 pin terminal platform + 12-45VDC input power supplyD) X144.3 (H) mm, mounting method: DIN rail mounting, wall mount mounting ● Autodi MDI/MDI-X compatible ● Store-on forward transfer support ● Flow control compatible ● The housing is IP-30 compliant.



-
Type
Number of standard ports 6
Maximum number of ports 8
Communication speed 100m
SNMP function None
AUTO-MDIX function Yes
VLAN function None
Cooling fan
Number of expansion slots
Manual speed switching
Stackable function
Number of MAC address registration 8192
body color
housing material
Power
Magnet
Rack mount kit
Maximum power consumption 6W
Maximum power consumption (remarks)
CO2 emission 5.782kg/year
Remarks
asbestos non -containing
ROHS Directive Response
J-Moss non -support
Environmental Self -assertion mark Yes
Other environments and safety standards
Radio Law Reference Because there is no wireless function
Telecommunications Business Law Because it does not connect to a public line
Electrical Equipment Safety Law Remarks DC power input
Radio Law non -target
Telecommunications Business Law non -target
Electrical Appliance Safety Law non -target
Legal Related Confirmation Date 20150101
body size (H) 145mm
body size (W) 52mm
body size (D) 107mm
body weight
