• ORING IGPS IGPS-1042GPA [Industrial Gigabit PoE Ethernet Switch PoE SFP]
1 1

ORing

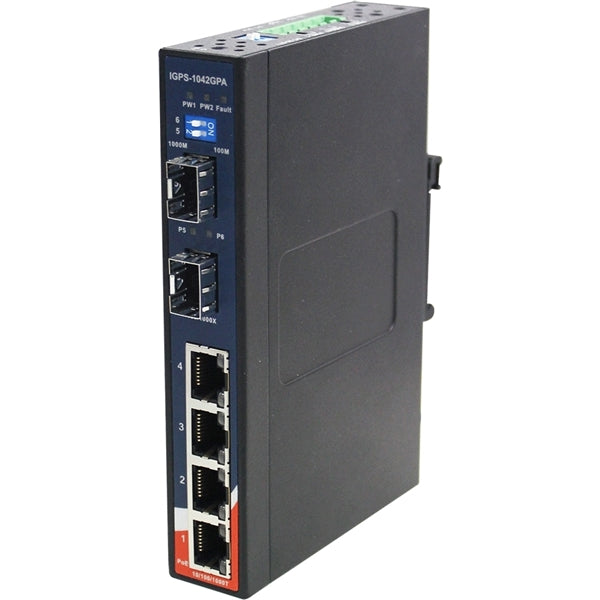

ORING IGPS IGPS-1042GPA [Industrial Gigabit PoE Ethernet Switch PoE SFP]

$18,866.00 TWD
$19,859.00 TWD $18,866.00 TWD
Sale Sold out
Tax included. Shipping calculated at checkout.

● Industrial 6-port non-management type Giga PoE Ethernet Switch ● Number of ports: P.S.E compatible 10/100/1000BASE-T (X) × 4 ports, 100/1000BASE-X SFP × 2 Port ● Power: Dual power input compatible/50~ 57V DC input (6-pin terminal stand) ● Operation temperature: -40-70 ° C (without condensation) ● Dimensions: 26.1 (W) x94.9 (d) x144.3 (H) mm ● Mounting method: dinRails and wall cloak mounting ● IEEE 802.3AT compliant P.S.E port (up to 30W/port) ● Up to 9KByTES Jumbo frames are compatible ● Equipped with SFP port for 100BASE-FX and 1000BASE-X ● Autonago MDI/MDI-XCorrespondence ● Store and forward transfer support ● Flow control compatible ● The housing complies with IP-30



-
Type
Number of standard ports 4
Maximum number of ports 6
Communication speed 1000m
SNMP function None
AUTO-MDIX function Yes
VLAN function None
Cooling fan
Number of expansion slots
Manual speed switching
Stackable function
Number of MAC address registration 1000
body color
housing material
Power
Magnet
Rack mount kit
Maximum power consumption 6.5W
Maximum power consumption (remarks)
CO2 emission 6.263kg/year
Remarks
asbestos non -containing
ROHS Directive Response
J-Moss non -support
Environmental Self -assertion mark Yes
Other environments and safety standards
Radio Law Reference Because there is no wireless function
Telecommunications Business Law Because it does not connect to a public line
Electrical Equipment Safety Law Remarks DC power input
Radio Law non -target
Telecommunications Business Law non -target
Electrical Appliance Safety Law non -target
Legal Related Confirmation Date 20150101
body size (H) 145mm
body size (W) 27mm
body size (D) 95mm
body weight
