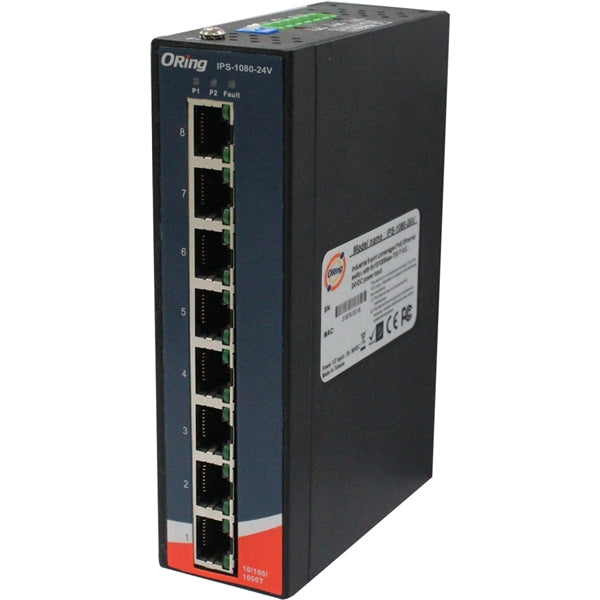

• ORING IPS IPS-1080-24V [Industrial PoE Ethernet Switch 24VDC input 8 port]
1 1

ORing

ORING IPS IPS-1080-24V [Industrial PoE Ethernet Switch 24VDC input 8 port]

$18,435.00 TWD
$19,406.00 TWD $18,435.00 TWD
Sale Sold out
Tax included. Shipping calculated at checkout.

● Industrial 24VDC input support 8 Port non-controlled PoE Ethernet Switch ● Number of ports: P.S.E compatible 10/100BASE-T (x) × 8 ports ● Power: Dual power input compatible/24-36V DC input (6-pin term term term terminal)● Operation temperature: -40-70 ° C (without condensation) ● Dimensions: 41 (W) x94.9 (D) x144.3 (H) MMPoE port (up to 30W/port, total 120W), ● Dual power supply 24VDC input ● Autodi MDI/MDI-X compatible ● Store-on forward transfer support ● Flow control compatible ● System warning can be set by relay output ● Slim SlimIn a case-compliant case of IP-30



-
Type
Number of standard ports 8
Maximum number of ports
Communication speed 100m
SNMP function None
AUTO-MDIX function Yes
VLAN function None
Cooling fan
Number of expansion slots
Manual speed switching
Stackable function
Number of MAC address registration 2048 cases
body color
housing material
Power
Magnet
Rack mount kit
Maximum power consumption 4.5W
Maximum power consumption (remarks)
CO2 emission 4.336kg/year
Remarks
asbestos non -containing
ROHS Directive Response
J-Moss non -support
Environmental Self -assertion mark Yes
Other environments and safety standards
Radio Law Reference Because there is no wireless function
Telecommunications Business Law Because it does not connect to a public line
Electrical Equipment Safety Law Remarks DC power input
Radio Law non -target
Telecommunications Business Law non -target
Electrical Appliance Safety Law non -target
Legal Related Confirmation Date 20150101
body size (H) 145mm
body size (W) 41mm
body size (D) 95mm
body weight
