• ORING IGS IGS-1042GPA [100/1000FX-SFP with port Gabit Ethernet Switch]
1 1

ORing

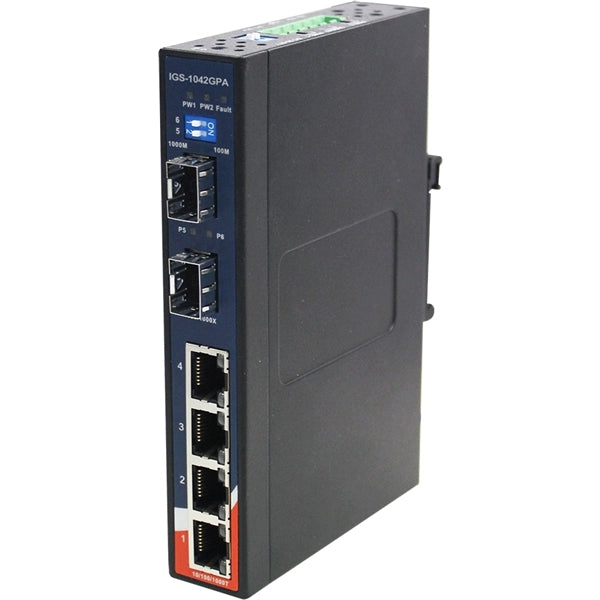

ORING IGS IGS-1042GPA [100/1000FX-SFP with port Gabit Ethernet Switch]

$10,524.00 TWD
$11,078.00 TWD $10,524.00 TWD
Sale Sold out
Tax included. Shipping calculated at checkout.

● Gigabit Ethernet switch with industrial gigabit SFP port ● Number of ports: 10/100/1000BASE-T (x) × 4 ports, 100/1000BASE-X SFP × 2 port ● Power Source: Dual Power Input support/12-48V DC input(6-pin terminal stand) ● Operation temperature: -40-70 ° C (without condensation) ● Dimensions: 26.1 (W) x94.9 (D) x144.3 (H) Mounting method: Din rail and wallmanantMounting ● Up to 9KBYTES jumbo frame compatible ● SFP port is 100BASE-FX, 1000BASE-X compatible ● Auto negotiation and auto MDI/MDI-X support ● Store forward transfer support ● Flow control compatible ● IP-30 compliant housing



-
Type
Number of standard ports 4
Maximum number of ports 6
Communication speed 1000m
SNMP function None
AUTO-MDIX function Yes
VLAN function None
Cooling fan
Number of expansion slots
Manual speed switching
Stackable function
Number of MAC address registration 1000
body color
housing material
Power
Magnet
Rack mount kit
Maximum power consumption 6.4W
Maximum power consumption (remarks)
CO2 emission 6.167kg/year
Remarks
asbestos non -containing
ROHS Directive Response
J-Moss non -support
Environmental Self -assertion mark Yes
Other environments and safety standards
Radio Law Reference Because there is no wireless function
Telecommunications Business Law Because it does not connect to a public line
Electrical Equipment Safety Law Remarks DC power input
Radio Law non -target
Telecommunications Business Law non -target
Electrical Appliance Safety Law non -target
Legal Related Confirmation Date 20150101
body size (H) 145mm
body size (W) 27mm
body size (D) 95mm
body weight
