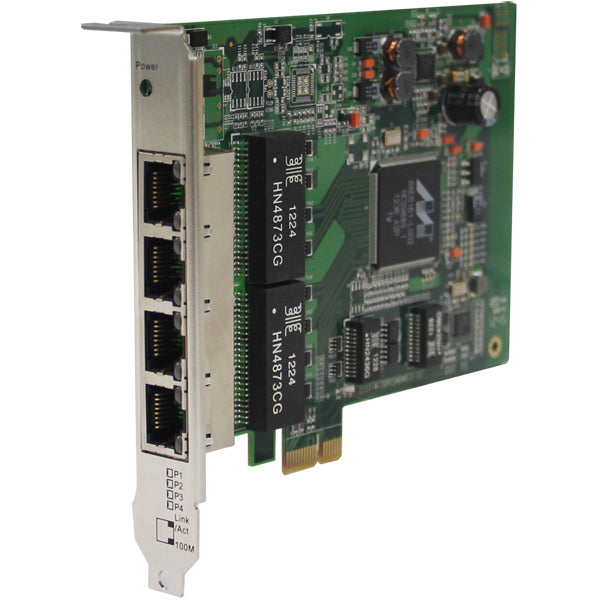

• ORING IGCS IGCS-E140 [PCIe Gigaisanet Card 4 Port non-controlled type]
1 1

ORing

ORING IGCS IGCS-E140 [PCIe Gigaisanet Card 4 Port non-controlled type]

$10,937.00 TWD
$11,512.00 TWD $10,937.00 TWD
Sale Sold out
Tax included. Shipping calculated at checkout.

● Industrial PCIE Standard 4 Port Gigabit Compatible Ethernet Switch Card ● Number of ports: 10/100/1000BASE-T (x) × 4 ports ● Power input: PCIE bus power, power consumption: 4.2W (average) ● Operation temperature:-10-60 ° C (without condensation) ● Dimensions: 21.3 (W) x136 (D) x121 (H) MM ● PcIEX1 standard can be mounted on X4, X8, X16 PCIe slots ● PCIe Rev.1.1 Interface compliant● 10K-byte jumbo frame-compatible ● Auto-negotiations and auto MDI/MDI-X compatible ● Store-for forward transfer ● Flow control compatible



-
Compatible model
Compatible OS
Compatible protocol
Interface PCIe (1)
LAN port type
Communication speed
Accessories
Remarks
asbestos non -containing
ROHS Directive Response
J-Moss non -support
Environmental Self -assertion mark Yes
Other environments and safety standards
Radio Law Reference Because there is no wireless function
Telecommunications Business Law Because it does not connect to a public line
Electrical Equipment Safety Law Remarks DC power input
Radio Law non -target
Telecommunications Business Law non -target
Electrical Appliance Safety Law non -target
Legal Related Confirmation Date 2015-01-01
body size (H)
body size (W)
body size (D)
body weight
