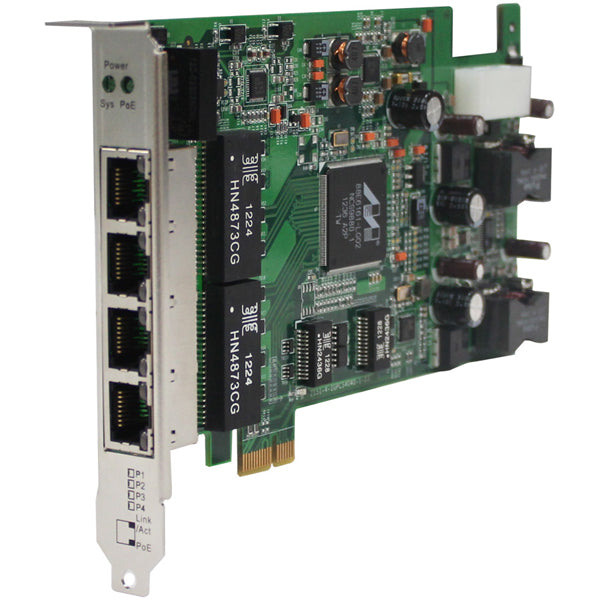

• ORING IGPCS IGPCS-E140 [PCIe Giga PoE Ethernet Card 4 Port non-controlled type]
1 1

ORing

ORING IGPCS IGPCS-E140 [PCIe Giga PoE Ethernet Card 4 Port non-controlled type]

$19,064.00 TWD
$20,067.00 TWD $19,064.00 TWD
Sale Sold out
Tax included. Shipping calculated at checkout.

● Industrial PCIE Standard 4 Port Gigabit PoE Ethernet Switch Card ● Number of ports: 10/100/1000BASE-T (X) × 4 port ● Power input: PCIE bus power (12VDC ATX is required when using PoE),Power consumption: 4.2W (average) (State without PoE connection device) ● Operation temperature: -10 to 60 ° C (without condensation) ● Dimensions: 21.3 (W) x178 (D) x121 (H) mm ● IEEE 802.3AT compliant (up to 65W, up to 30W for each port) ● Supply from 12VDC of ATX power supply ● Each LAN port PoE, non -PoE automatic connection compatible (automatic detection, classification) ● PCIEX1 standard, X4, X8, X8,It can also be mounted on the X16 PCIe slot ● PCIe Rev.1.1 interface compliant ● 10K bytes jumbo frame compatible ● Auto-negotiations and auto MDI/MDI-X support ● Store-forward transfer support ● Flow control compatible



-
Compatible model
Compatible OS
Compatible protocol
Interface PCIe (1)
LAN port type
Communication speed
Accessories
Remarks
asbestos non -containing
ROHS Directive Response
J-Moss non -support
Environmental Self -assertion mark Yes
Other environments and safety standards
Radio Law Reference Because there is no wireless function
Telecommunications Business Law Because it does not connect to a public line
Electrical Equipment Safety Law Remarks DC power input
Radio Law non -target
Telecommunications Business Law non -target
Electrical Appliance Safety Law non -target
Legal Related Confirmation Date 2015-01-01
body size (H)
body size (W)
body size (D)
body weight
