Vixen

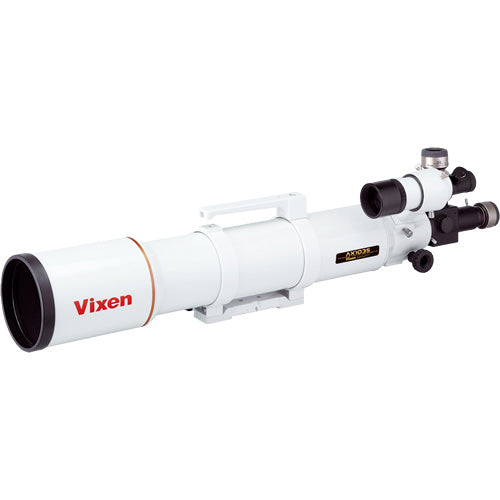

VIXEN Bixen AX103S Lips
Regular price
$2,918.22 USD
Regular price
$3,071.81 USD
Sale price
$2,918.22 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The "lens barrel" is a tube containing "high -precision optical lenses and reflective mirrors" to collect weak light from the stars and get an enlarged image.In other words, it is a part that can be said to be the body of the astronomical telescope.In Vixen, the lens barrel alone can be replaced according to the differences in situations and applications such as astronomical observation with the eyes and photography of astrophotical photos using a camera, and upgraded to a larger lens barrel.Many are also available.
-
| Effective diameter | 103mm/three -piece ed lens apocromart, multi -coat |
|---|---|
| Focal length (caliber ratio f) | 825mm (F8) |
| Resolution/Extreme grade | 1.13 seconds, 11.8 stars |
| light -collecting power | 217 times the naked eye |
| Size/Weight | Length 670⇔ 762mm outer diameter 115mm 6.4kg (main unit 4.6kg) |
| Finder | Dark view 7 times 50mm real view 7 degrees |
| parts mounting size | (including screw) 60mm/42mmT ring screw, (insertion) 50.8mm (50.8mm eyepiece lens is used separately optional parts) ・ 31.7mm (with flip mirror) |
| Plate band, etc. | Lens barrel band, attachment plate WT, metal carry handle |
| Photography | Enlargement, impatient, compact digital camera (cramate) can be taken * Separate camera adapter is required |
| Observation of the sun | Solar projection B set (sold separately) is possible (short -time observation) |
