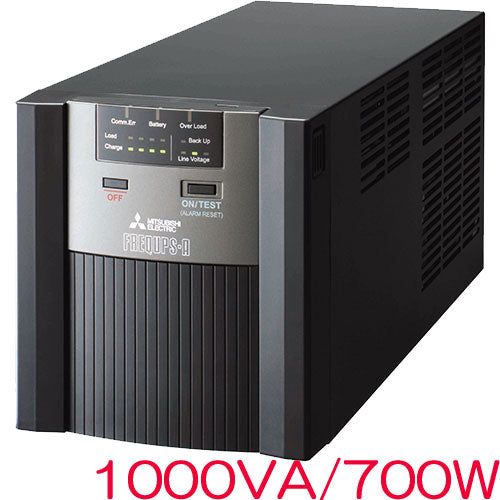

• Mitsubishi Electric FW-A10H-1.0K [FREQUPS A Series (Line Interactive) 1000VA/700W Long life]
1 1

MITSUBISHI

Mitsubishi Electric FW-A10H-1.0K [FREQUPS A Series (Line Interactive) 1000VA/700W Long life]

Mitsubishi Electric FW-A10H-1.0K [FREQUPS A Series (Line Interactive) 1000VA/700W Long life]

FW-A10H-1.0K

$883.00 USD
$883.00 USD
Sale Sold out
Shipping calculated at checkout.

Genuine new product · Ships from Tokyo by FedEx · Import duties & taxes are not included and are paid by the buyer on delivery. Details

Mitsubishi Electric FREQUPS FW-A10H-1.0K is a 1000VA / 700W line-interactive UPS made for the Japanese market. Its output can be set to 110/115/120V, so it also runs on North American and other 110–120V mains. The replacement battery is the FW-ABTL-1.0K.

Japan-domestic UPS units like the FW-A10H-1.0K are often built into Japanese-made machines — semiconductor and SMT lines, inspection systems, machine tools and lab analyzers. Replacing a failed unit with the same model avoids rewiring and re-qualification. We ship genuine new units from Tokyo by FedEx; tell us your country and we will confirm voltage and plug before you order.

Quick facts for international buyers

Model FW-A10H-1.0K
Usable on 110–120V mains Yes — set the voltage mode to 110/115/120V. Suitable for the USA, Canada, Mexico, Taiwan, the Philippines (110V areas), parts of Central/South America and Saudi Arabia, and Japan. For 220–240V mains a step-down transformer is required.
Input voltage AC81V~124V + 3V
Input plug / connection NEMA 5-15R
Replacement battery FW-ABTL-1.0K
Battery type Sealed lead-acid (VRLA), non-spillable. Expected life: 5 years at 20°C.
Certification Japanese domestic model (no UL/CE mark; FREQUPS UL/CE versions were discontinued in 2023).
Market Genuine new product for the Japanese market. Manuals and labels are in Japanese.
Need help? See the OMRON / Mitsubishi UPS battery cross-reference, or contact us with your UPS model and country and we will confirm compatibility before you order.

Manufacturer specifications

Uses a long-life battery (expected life: 5 years, ambient temperature: 20°C). Supports a wide range of input voltages from AC 81 V to 124 V by performing voltage correction with the AVR function. Protects backup equipment by preventing lightning surges, noise, etc. The operation part of the UPS is made into a wired remote controller and connected to the main UPS with a cable. It is easy to check the operating status under the desk, in the rack, or out of sight. With the hot-swap method, the front panel can be opened and closed even while the UPS is in operation. The battery can be easily replaced even when the UPS is in operation. With RS232C connector and USB connector

UPS topology Line-interactive
Form factor Stationary
Rated input voltage AC81V~124V + 3V
Rated input frequency 50Hz/60Hz ±10%
Number of input phases Single-phase two-wire system (with ground)
Input plug NEMA5-15R
Rated output voltage AC100V 5%
Rated output frequency 50Hz/60Hz ±0.8%
Number of output phases Single-phase two-wire system (with ground)
Outlet shape 2P15A outlet with single-phase grounding pole
Number of output outlets (backup): 6 *Time lag switch on/off function (OUTPUT 1: 4, OUTPUT 2: 2)
Non-backup outlets (surge only) 0
Power consumption (normal/max) 50W
Maximum output capacity (W) 700W
Maximum output capacity (VA) 1000VA
Backup time (at full load) 5 minutes
Output voltage during battery operation 100V
Output frequency during battery operation 50/60Hz ± 0.8%
Output waveform during battery operation Low distortion sine wave
Transfer time Within 4 ms
Battery type Compact sealed lead battery (expected life: 5 years, ambient temperature: 20°C) hot-swappable/maintenance is easy with battery and fan full-surface removal
Number of batteries one
Charging time Within 5 hours
Bundled power management software None (sold separately) *Simple management software can be downloaded from the Mitsubishi Electric website
Software OS support Sold separately (FREQSHIP) Windows2000/XP/Sever2003/Vista/solaris10/HP-UX/AIX/RedHat Linux/SUSELinux/MiracleLinux/TurboLinux, etc.
Surge function Yes (4000V peak 1.2μS (rising) × 50μS (falling) voltage is applied between the main circuit and ground and between the main circuit lines (between R and S), and it has been confirmed that there is no problem such as damage to the UPS. )
Safety standards VCCI class A
Dimensions 220×170×440mm
Weight 21kg
Remarks: Battery output voltage: AC100V 5%
RoHS Directive Compliant (built-in battery is not subject to RoHS Directive)
